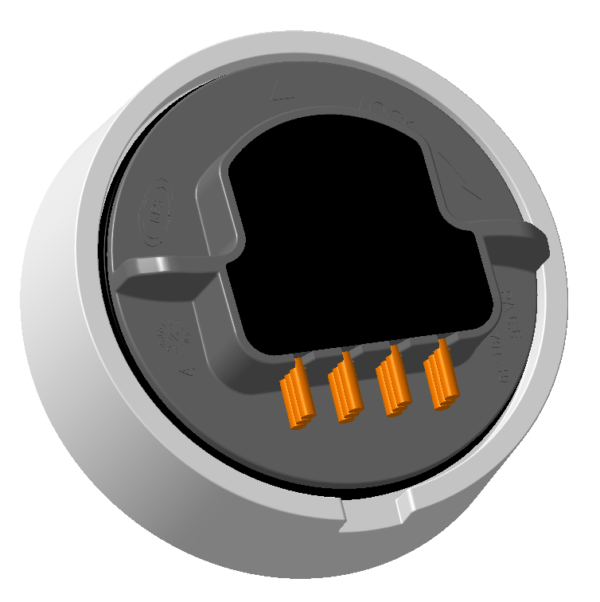

1-12w grommet 90°, sealed
Sold as: Part of a cable harness
Detail Product Description:
| Numbers of Ways: | 1w; 2w; 3w; 4w; 5w; 6w; 7w; 8w; 9w; 10w; 11w; 12w |
| Outer diameter of Wire Insulation (mm): | ø 1,3 – 1,9 |
| Cable Exit Angle: | 90° |
| Grommet Outer diameter (mm): | ø 45 |
| Counterpart Hole diameter (mm): | ø 32,2 |
| Grommet Mounting Type: | Bayonet |
| Primary Product Color: | Black |
| Housing Material: | PA6.6 |
| Operating Temperature Range: | -40/+85°C |
| Sealable: | Yes |
| Seal No.: | 566.16.701.70 |
| Additional Accessories: | – |
| Sold as: | Part of a cable harness |
Packaging Features:
| Packaging Type: | – |
| Quantity (pcs): | – |
| Total Weight (Kg): | – |
| Size (L x W x H): | – |
