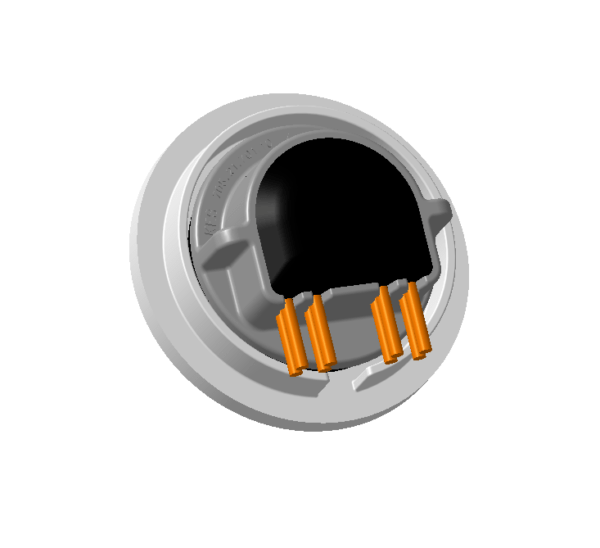

1-8w grommet 90°, sealed
Sold as: Part of a cable harness
Detail Product Description:
Numbers of Ways: | 1w; 2w; 3w; 4w; 5w; 6w; 7w; 8w |
Outer diameter of Wire Insulation (mm): | 4x ø 1,2 – 1,4 + 4x ø 1,2 – 1,7 (min. wall thickness of insulation 0,2mm) |
Cable Exit Angle: | 90° |
Grommet Outer diameter (mm): | ø 24,9 |
Counterpart Hole diameter (mm): | ø 16,5 |
Grommet Mounting Type: | Bayonet |
Primary Product Color: | Black |
Housing Material: | PA6.6 |
Operating Temperature Range: | -40/+85°C |
Sealable: | Yes |
Seal No.: | F00I6400 |
Additional Accessories: | – |
Sold as: | Part of a cable harness |
Packaging Features:
Packaging Type: | – |
Quantity (pcs): | – |
Total Weight (Kg): | – |
Size (L x W x H): | – |
